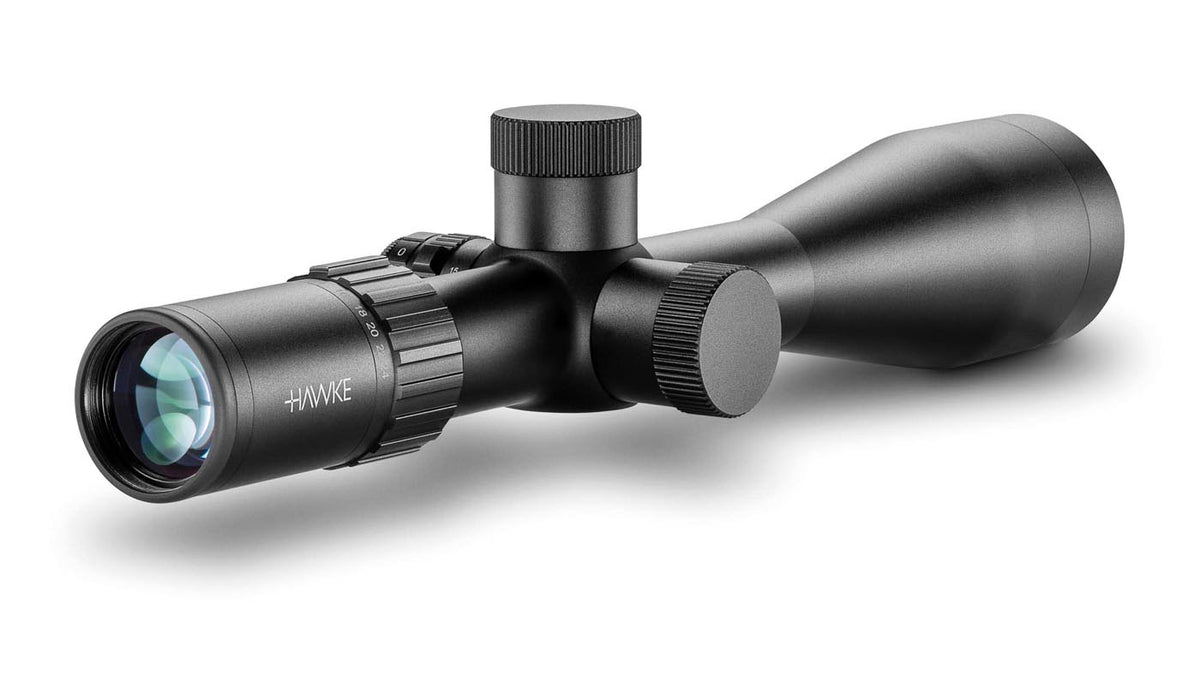

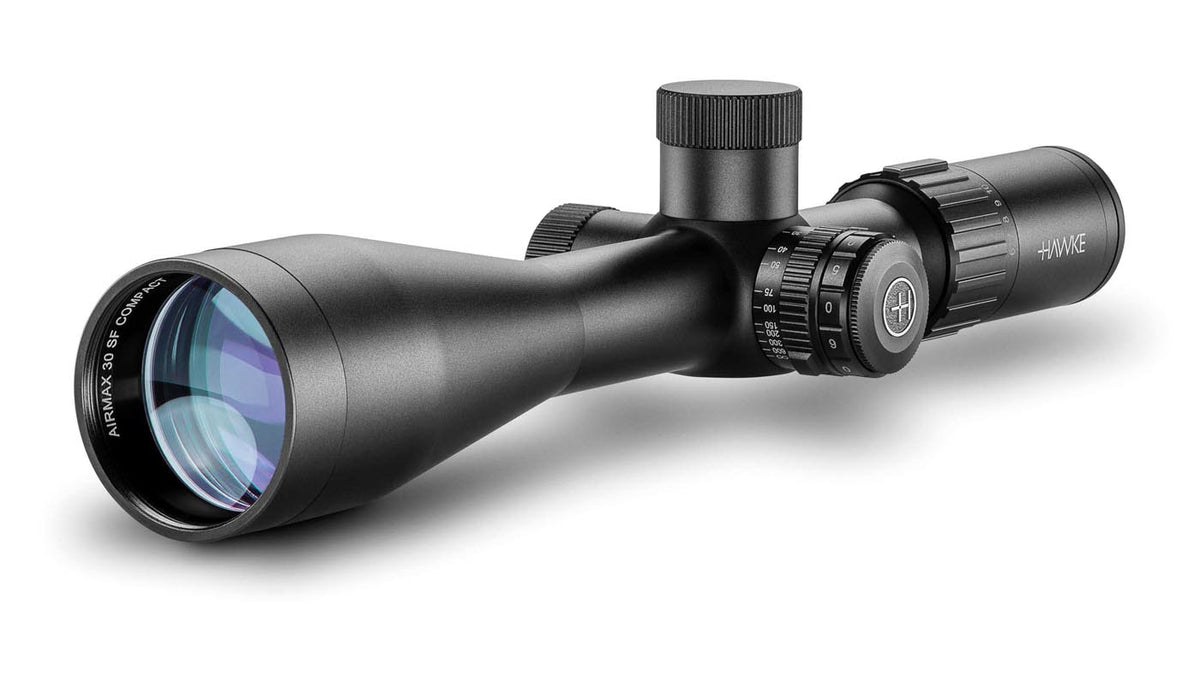

Hawke AIRMAX 30 SF COMPACT 6-24x50 AMX IR RETICLE
Specialist scopes designed by airgunners for airgunners!
Airmax scopes feature our H2 optics in a variety of configurations designed to suit airgun characteristics.
- Capped Target Turrets
- 30mm Mono-tube chassis
- Wide Angle
- Side Focus
- Illumination
- 16 layer Fully Multi-Coated lenses
- High torque zoom ring
- Fast focus eyebell
- AMX reticle designed for airguns
AMX Reticle
Both the AMX and AMX IR glass etched reticles are based on the spacing of a 10x Mil Dot. The AMX offers multiple aim points, useful when shooting air guns with loopy trajectories.
Half Mil Dot spacing on the lower post provides increased aim points for long shots.
The horizontal bars are calculated at 0.5, 1.5, 2.5, 3.5 and 4.5 mil spacing. Hollow posts are segmented into mil spacing and can be used for bracketing.
Scope Tube
30mm
Optical System
System H2
Objective Lens
50mm
Reticle
AMX IR
Illumination
6 Levels (Red)
Illumination Control
Stepped Rheostat with Off Positions In-between
Parallax
Side Focus
Magnification
6 - 24x
Focal Plane
SFP (Second Focal Plane)
Field of View
21.9 - 5.5ft @100yds
7.3 - 1.8m @100m
Field of View (°)
4.2 - 1.1
Eye Relief
3in
76mm
PX/Focus (Error free from)
10yds - ∞
9m - ∞
Exit Pupil
0.33 - 0.08″
8.3 - 2.1mm
Click Value
1⁄ 10MRAD
Elevation Turret Clicks (max)
16 MRAD
Windage Turret Clicks (max)
16 MRAD
Ocular Type
Fast Focus
Power Selector
Knurled Posi-Grip
Lens Coating
Fully Multi-Coated - 16 Layers
Length
13in
329mm
Weight
23.6oz
670g
Turret Type (Elevation)
Target, Capped, Resettable
Turret Type (Windage)
Target, Capped, Resettable
Hawke AIRMAX 30 SF COMPACT 6-24x50 AMX IR RETICLE
Sale price€489,95
